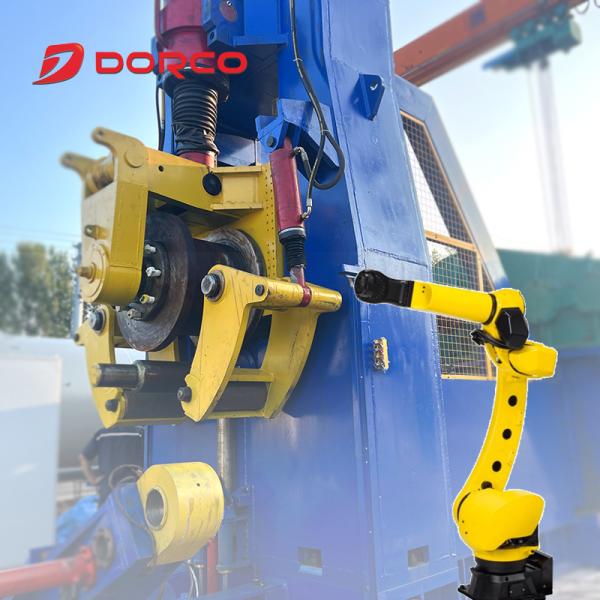

The automated production line of this ring rolling machine is designed for large-scale production of 5-10KG precision forging rings, using an intelligent production system with a maximum production capacity of 240 pieces/hour, achieving unmanned operation throughout the entire process from raw material feeding to finished product sorting.
The automation configuration is as follows:
1. Use a slide table with a single axis robot to grab the bars from the heating furnace and send them to the upsetting station of the press;
2. Use a flat four axis robot to transfer workpieces at three workstations of the press;
3. Single axis robots equipped with ejector devices and transition tables are used to unload and wait for materials at the three workstations of the press;
4. Adopting a dual robot mobile platform for automatic loading and unloading of the ring rolling machine;
5. Use KUKA210 robot for loading, unloading, and palletizing of ring components;
The system includes functions such as on-site monitoring, real-time production indicators, and equipment efficiency analysis. Through a visual dashboard, the on-site status can be easily and clearly understood.
We provide comprehensive service support from pre project consultation to equipment installation, debugging, and maintenance in the later stages. In the implementation process of customized solutions, we maintain close communication with clients, promptly solve problems encountered, and ensure the smooth progress of the project.
If you are interested in our ring rolling machine automation equipment, please feel free to contact us at any time. We look forward to providing you with more services and support.
