Product Description:

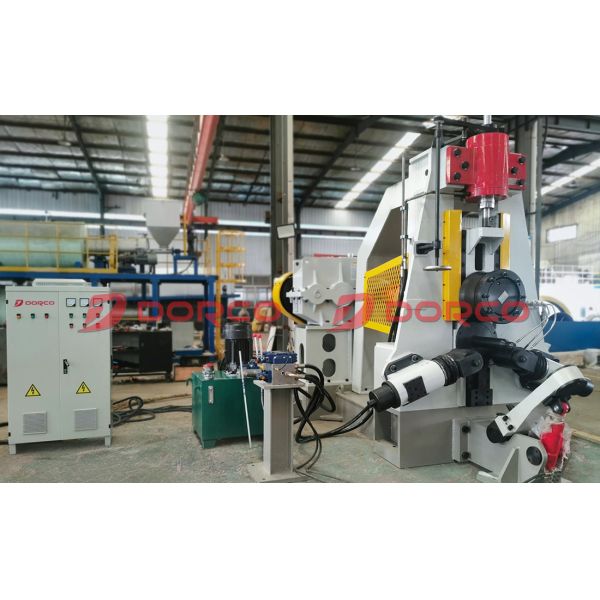

The DRC-D51K CNC vertical ring rolling machine is a high-precision and high-efficiency CNC equipment developed specifically for the field of ring processing. Its vertical design combined with advanced control technology optimizes the production process, ensuring consistent high-quality products output in large-scale manufacturing.
Features:
This device has multiple key advantages:
Integrating loading and unloading robotic arms and robots to achieve fully automated unmanned operation, improving production efficiency and reliability.
Adopting servo motor drive and PLC control system to achieve precise feed motion control and enhance machining stability.
By using the digital to analog conversion module and encoder interface control, the size and shape accuracy of the ring components are ensured to meet high standard requirements.
The slider guide rail has a long surface and a rectangular cross-section, with high guide rail accuracy and extended equipment service life.
A rolling process that can achieve a larger rolling ratio and roll more complex shaped products;
A newly designed human-machine interface with one click storage and one click switching of processing parameters;
The end of the lower support shaft is designed with a square hole, making it easy to replace the rolling mill, reducing non production time consumption, and improving overall efficiency.
Technical Parameters:
| DRC-D51K(H) | 160 | 250 | 350 | 450 | 550 | 800 | 1000 | 1200 | 1300 |
| DRC-D51K(P) | 160 | 250 | 350 | / | / | / | / | / | / |
| Nominal outer diameter of grinding ring(mm) | 160 | 250 | 350 | 450 | 550 | 800 | 1000 | 1200 | 1300 |
| Range of outer diameter of rolling ring(mm) | 55-160 | 80-250 | 180-350 | 250-500 | 350-600 | 400-800 | 500-1000 | 600-1200 | 600-1300 |
| Ring rolling height(mm) | 40 | 130 | 160 | 230 | 300 | 200 | 200 | 200 | 300 |
| Radial rolling force(KN) | 50 | 150 | 300 | 500 | 550 | 550 | 800 | 800 | 800 |
| Linear rolling speed(m/s) | 2.5 | 1.8 | 1.5 | 1.5 | 1.3 | 1.37 | 1.3 | 1.3 | 1.3 |
| Cylinder stroke(mm) | 50 | 100 | 110 | 130 | 150 | 200 | 250 | 250 | 350 |
Note:
1. K (H): The main transmission of the machine adopts a hydraulic device.
K (P): The main transmission of the machine adopts a pneumatic device.
Applications:
In summary, the DRC-D51K CNC vertical ring rolling machine is suitable for various ring processing scenarios, including the production of workpieces such as wheel rims, wheels, and gears. It is widely used in the industrial manufacturing field and helps users improve production efficiency.
Customization:
Our company is committed to providing customers with comprehensive intelligent ring processing solutions. In addition to the high-quality D51K CNC vertical ring rolling machine, we also provide professional intelligent system upgrade services, technical training, and comprehensive after-sales support.
